TD63 Pro 3D Automatic Dozer Blade Control

HIGH ACCURACY AUTOMATIC 3D CONTROL

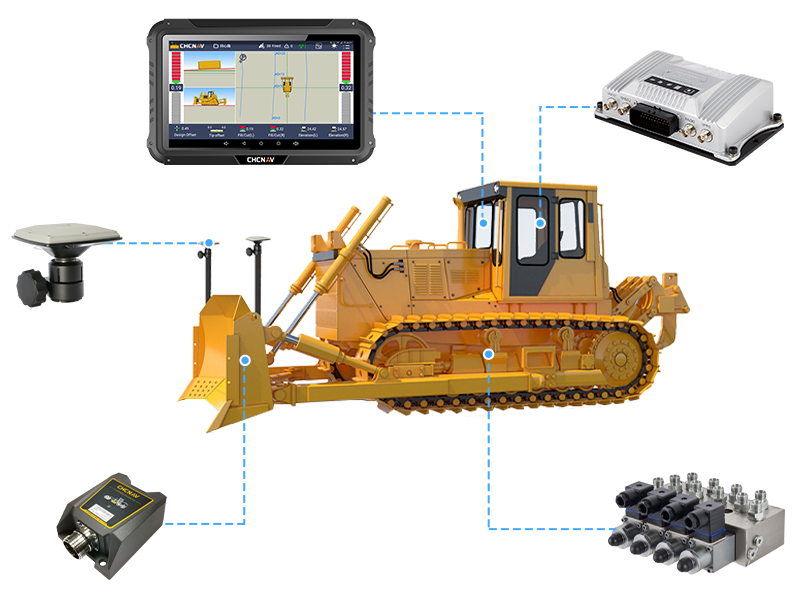

The TD63 PRO automatic 3D dozer control system improves the quality and productivity of earthmoving and fine grading operations. Powered by a high-precision dual GNSS positioning and IMU sensor, the TD63 PRO guarantees unmatched accuracy in 3D positioning and heading to control the dozer blade, regardless of the machine’s position.

Achieve centimeter-level precision with fully automated blade control
Consistent accuracy on both sides of the blade tip
Dual GNSS and 100 Hz IMU technology ensure precision in any machine position
Intelligent hydraulic control guarantees accuracy at different speeds
High-performance GNSS receiver for precise positioning on any jobsite

HIGH ACCURACY AUTOMATIC 3D CONTROL

The TD63 PRO automatic 3D dozer control system improves the quality and productivity of earthmoving and fine grading operations. Powered by a high-precision dual GNSS positioning and IMU sensor, the TD63 PRO guarantees unmatched accuracy in 3D positioning and heading to control the dozer blade, regardless of the machine’s position.

Achieve centimeter-level precision with fully automated blade control
Consistent accuracy on both sides of the blade tip
Dual GNSS and 100 Hz IMU technology ensure precision in any machine position
Intelligent hydraulic control guarantees accuracy at different speeds
High-performance GNSS receiver for precise positioning on any jobsite

EASY TO USE AND EFFICIENT

The TD63 PRO connects
seamlessly to advanced cloud-based management systems to transfer files from the office to the jobsite, streamlining workflows and increasing overall productivity and output..

Intuitive, user-friendly MCNAV software

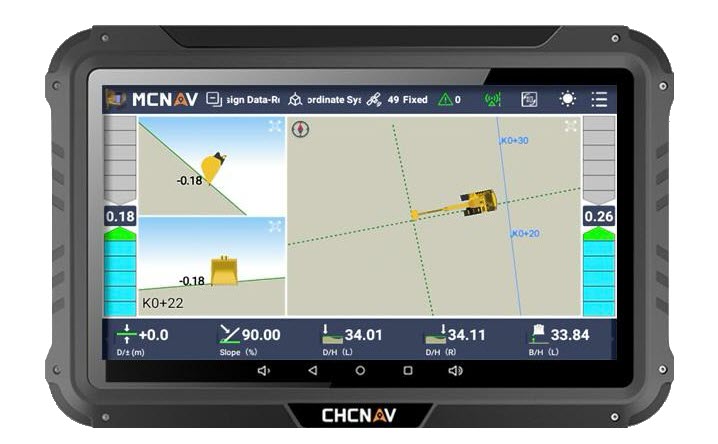

Powerful 10.1″ touchscreen Android tablet for user-friendly interactions
Singular blade sensor for streamlined installation
Fast installation process, completed in less than 6 hours
Quick calibration in just 30 minutes
Easily switch between 2D and 3D dual modes
Mount and dismount masts quickly and easily

COMPATIBILITY ACROSS THE BOARD

Automatic, real-time blade control to the design surface allows finished grade accuracy to be achieved
in less time by eliminating manual staking and minimizing errors and rework.

Compatible with all bulldozer models with hydraulic pilot valves
Supports TT450S, Transparent and Satel_ 3AS radio protocols
Accepts various coordinate calibration file formats such as crd, dc, cal, lok, jxl, loc, etc.
Provides flexibility for radio communications via fixed or mobile base stations and network data transfers
Covers the full satellite constellations: GPS, GLONASS, Galileo,
Beidou and QZSS
Supports design file formats including .rodx, .dxf, and .landxml
Fast and easy surface design in the field

COMPATIBILITY ACROSS THE BOARD

Automatic, real-time blade control to the design surface allows finished grade accuracy to be achieved
in less time by eliminating manual staking and minimizing errors and rework.

Compatible with all bulldozer models with hydraulic pilot valves
Supports TT450S, Transparent and Satel_ 3AS radio protocols
Accepts various coordinate calibration file formats such as crd, dc, cal, lok, jxl, loc, etc.
Provides flexibility for radio communications via fixed or mobile base stations and network data transfers
Covers the full satellite constellations: GPS, GLONASS, Galileo,
Beidou and QZSS
Supports design file formats including .rodx, .dxf, and .landxml
Fast and easy surface design in the field

ENHANCED GUIDANCE INTERFACE

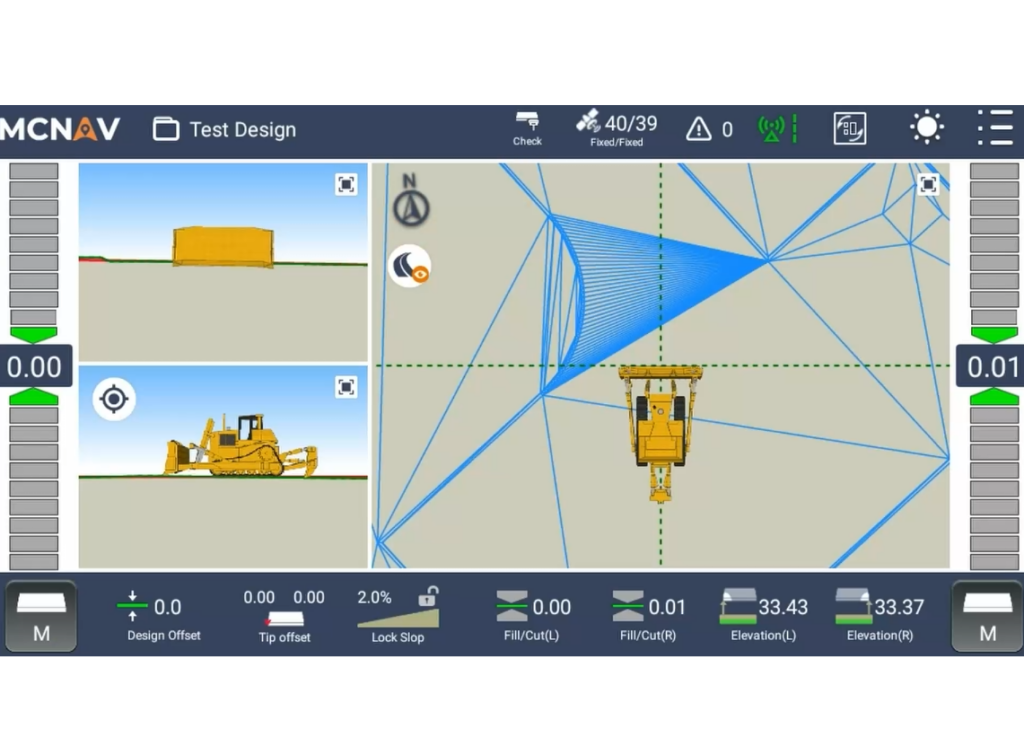

The TX63 system offers an intuitive guidance screen, providing synchronized mechanical attitude, model attitude, and cut-and-fill data. With four customizable views, operators have access to critical information tailored to their specific job sites and practices. The 10.1″ widescreen display ensures easy access to crucial data, enhancing efficiency on the job site.

SAFE AND RUGGED DESIGN

The TD63 PRO connects
seamlessly to advanced cloud-based management systems to transfer files from the office to the jobsite, streamlining workflows and increasing overall productivity and output..

Rugged and shock-resistant IMU sensor with IP67 and 50 G ratings
Industrial-grade antennas with metal housing, anti-interference protection, and IP68 rating
Ruggedized cables designed to resist wear and operate in a wide range of temperature environments

SAFE AND RUGGED DESIGN

The TD63 PRO connects
seamlessly to advanced cloud-based management systems to transfer files from the office to the jobsite, streamlining workflows and increasing overall productivity and output..

Rugged and shock-resistant IMU sensor with IP67 and 50 G ratings
Industrial-grade antennas with metal housing, anti-interference protection, and IP68 rating
Ruggedized cables designed to resist wear and operate in a wide range of temperature environments
